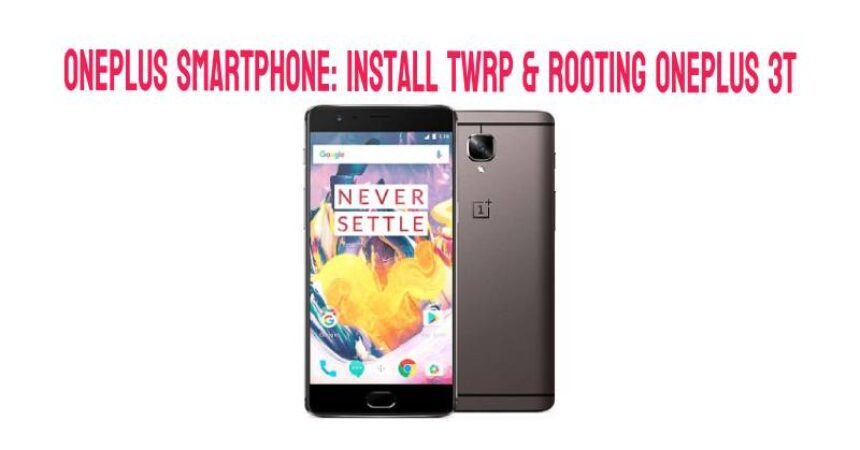

Oneplus Smartphone: Install TWRP & Rooting OnePlus 3T. The OnePlus 3T is a recently released smartphone from OnePlus, offering significant upgrades compared to its predecessor. With a 5.5-inch display at 401 ppi, it initially runs on Android 6.0.1 Marshmallow but has been updated to Android 7.1 Nougat. It features a Snapdragon 821 CPU, Adreno 530 GPU, 6GB of RAM, and either 64GB or 128GB of internal storage. It also boasts a 16 MP rear camera, 16 MP front camera, and a substantial 3400 mAh battery.
OnePlus Smartphone is known for creating smartphones that are developer-friendly, and the OnePlus 3T is no exception. It has already been equipped with TWRP recovery and root access, providing users with great flexibility. TWRP allows you to easily flash zip files, create backups for each partition, and selectively wipe specific partitions on your phone. This gives you the freedom to customize and optimize your OnePlus 3T to your liking.
TWRP recovery is the key to gaining absolute control over your phone. With root access, you can fine-tune your phone’s performance and introduce new features through applications like Xposed Framework. Custom recovery and root access open up a world of possibilities, allowing you to explore the capabilities of your Android smartphone fully. If you aspire to become a proficient Android user, these two fundamental elements are a must-try.
Oneplus Smartphone: Install TWRP Recovery & Rooting OnePlus 3T – Guide
Now that you have an understanding of TWRP recovery and root access, it’s time for us to proceed with flashing it onto your OnePlus 3T. Below, you’ll find a comprehensive guide on how to install TWRP custom recovery and root your brand-new OnePlus 3T. Be sure to follow the instructions closely to prevent any issues in the future.
Guidelines & Preparation
- This guide is only for OnePlus 3T. Trying it on other devices may brick them.
- Ensure that your phone’s battery is charged to at least 80% to prevent any power-related problems while flashing.
- To ensure safety, back up all essential contacts, call logs, SMS messages, and media content.
- To enable USB debugging on your OnePlus 3T, go to Settings > About Device > tap build number 7 times to unlock developer options. Then, enable USB debugging and “OEM Unlocking” if available.
- Ensure you use the original data cable to connect your phone to your PC.
- Carefully adhere to this guide’s instructions to prevent any mishaps.
Disclaimer: Rooting your device and flashing custom recoveries are not endorsed by the device manufacturer. The device manufacturer cannot be held responsible for any issues or consequences. Proceed at your own risk.
Necessary Downloads & Installations
- Download and proceed to install the OnePlus USB drivers.
- Download and install the Minimal ADB & Fastboot drivers.
- After unlocking the bootloader, download the SuperSu.zip file and transfer it to the internal storage of your phone.
Bypass OnePlus 3T Bootloader Lock
Unlocking the bootloader will result in the erasure of your device. Before proceeding, ensure that you have backed up all necessary data.
- Ensure that you have downloaded and installed the Minimal ADB & Fastboot drivers on your Windows PC or have installed Mac ADB & Fastboot for Mac.
- Now, establish a connection between your phone and your PC.
- Open the “Minimal ADB & Fastboot.exe” file on your desktop. If not found, navigate to C drive > Program Files > Minimal ADB & Fastboot, then press the Shift key + right-click an empty area and select “Open command window here”.
- Enter the following commands individually in the command window.
adb reboot-bootloader
This command will restart your Nvidia Shield in bootloader mode. Once it has rebooted, enter the following command.
fastboot devices
By executing this command, you can confirm the successful connection between your device and PC in fastboot mode.
fastboot oem unlock
This command unlocks the bootloader. On your phone, use the volume keys to navigate and confirm the unlocking process.
fastboot reboot
Executing this command will restart your phone. That’s it, you can now disconnect your phone.
- Download the “recovery. img” file specifically designed for OnePlus 3T.
- Copy the “recovery. img” file to the Minimal ADB & Fastboot folder in the Program Files directory of your Windows installation drive.
- Proceed to boot your OnePlus 3 into fastboot mode, following the instructions provided in step 4.
- Now, establish a connection between your OnePlus 3 and your PC.
- Open the Minimal ADB & Fastboot.exe file, as mentioned in step 3.
- Enter the following commands in the command window:
- fastboot devices
- fastboot flash recovery recovery.img
- fastboot boot recovery.imgThis command will boot your device into TWRP recovery mode.
- TWRP will ask for system modification permission. Swipe right to trigger dm-verity verification, then flash SuperSU.
- Tap on “Install” to flash SuperSU. If your phone’s storage is not working, perform a data wipe, then go back to the main menu, select “Mount”, and tap on “Mount USB Storage”.
- Once USB storage is mounted, connect your phone to your PC and transfer the SuperSU.zip file to your device.
- Throughout this entire process, make sure not to restart your phone. Stay in the TWRP recovery mode.
- Return to the main menu and select “Install” once again. Locate the SuperSU.zip file that you have recently copied and proceed to flash it.
- Once SuperSU has been successfully flashed, restart your phone. Congratulations, you have completed the process.
- After the reboot, locate the SuperSU app in your app drawer. To verify root access, install the Root Checker app.
To manually boot into TWRP recovery mode on your OnePlus 3T, turn off your device, then press and hold Volume Down + Power Key while turning it on. Continue holding the Volume Down key until your device boots into TWRP recovery mode.
Create a Nandroid Backup for your OnePlus 3 and explore using Titanium Backup since your phone is rooted.
Feel free to ask questions concerning this post by writing in the comment section below.
